Technical specifications

Film width: Max.440mm

Bag length:

Double knives:

Single knives: 150-330mm

Products height: max.80mm

Film roll diameter: max.320mm

Packing speed: 40-150bags/min

Power specification: 110V/220V/380V 50/60HZ 2.8KW

Machine size : (L) 4195 * (W) 840 * (H) 1400 mm

Machine weight: 370KG

Afer-sales service

1. Each machine with the relevant English operating instructions.

2. Our engineers can operate through a video demonstration.

3. professional engineers will answer the techonical questiones at wroking time by phone call or WhatsApp or other tools.

4. Sending engineer to overseas for installation and training is agreed.

The feature of the Packing machine

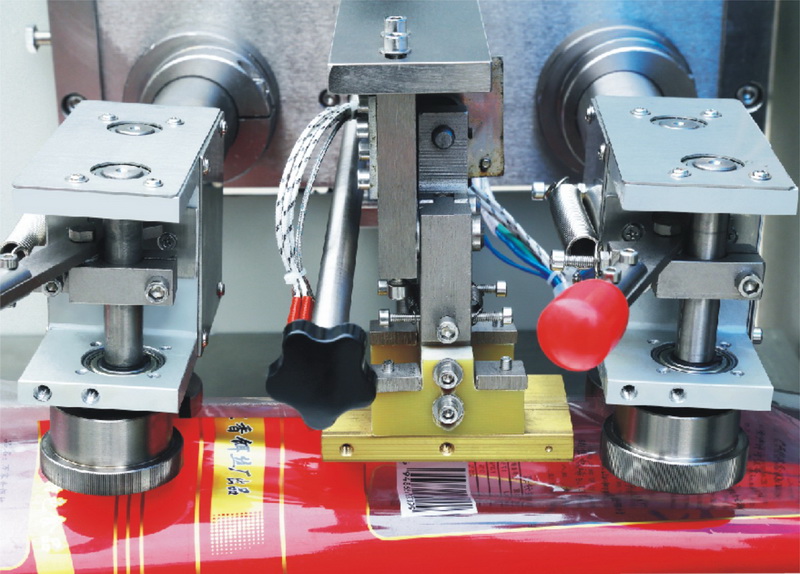

1.Cross seal and middle seal are controlled by independent  motor. With simple mechanical structure, stable operation, and low noise.

2.High speed, high accuracy, the maximum speed can be up to 230 bags / min.

3.Human machine interface,convenient and smart parameter settings.

4.Automatic fault diagnosis function,fault displayed clearly.

5.Color tracking, digital input seal cutting position, make the seal cutting position more accuracy.

6.Double supporting paper structure, automatic film connecting device, simple film changing , quick and accuracy.

7.All controls can be implemented by software system, facilitate functional tuning and technical upgrading, and never fall behind.
